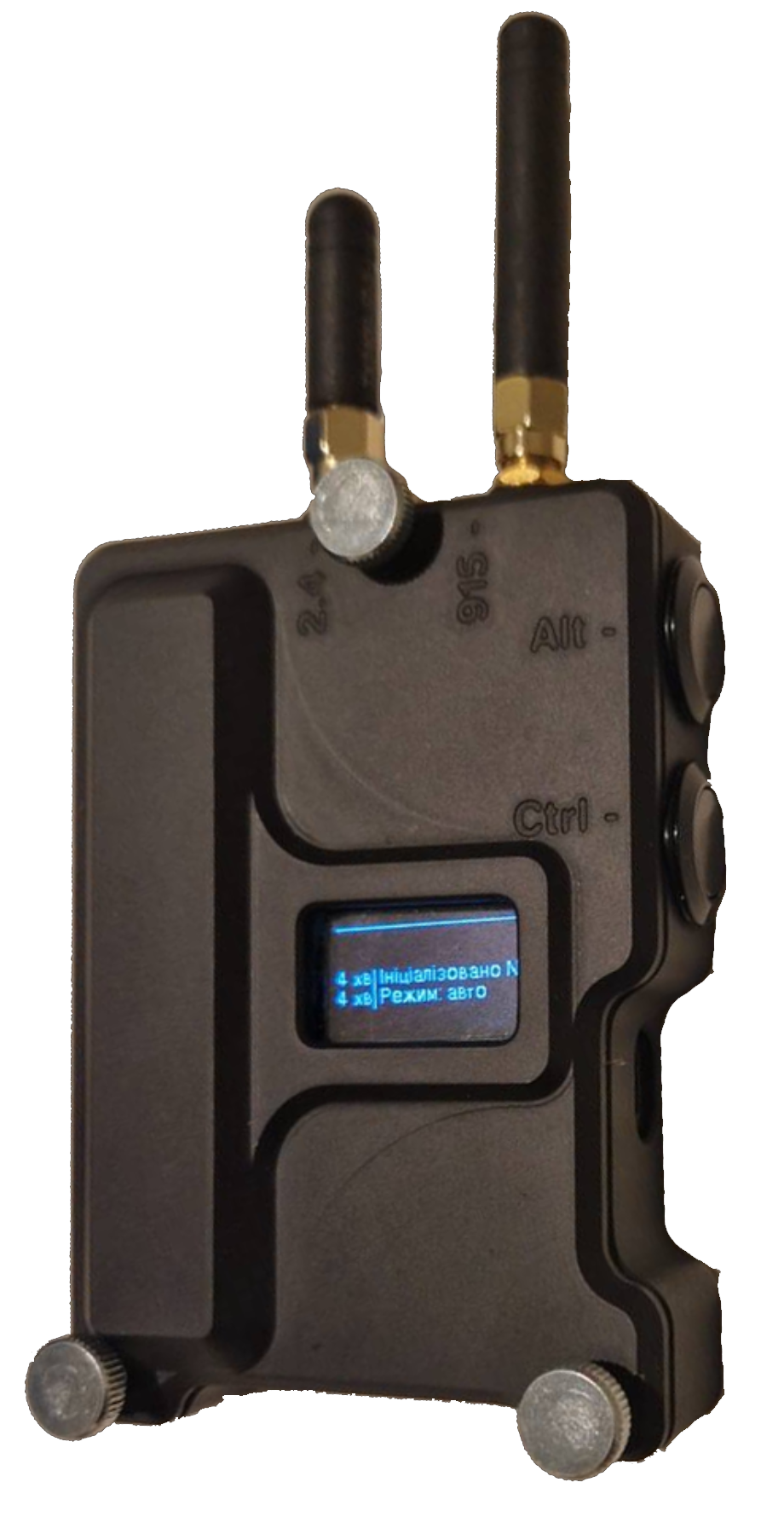

Tsukorok Drone Detector
The Tsukorok Drone Detector is a handheld personal device,
designed to increase a situation avareness of the military personel on the
battlefield.
Technical Specifications
- Frequency Bands: 720–1020 MHz, 2.4–2.5 GHz
- Fully automatical detection
- Quick start: a single-page manual for easy start included.
- High sensitivity, down to -132dBm
- Wide frequnecy ranges coverage
- Low energy consumption, up to 20 hours of battery life
- Easy replacable battery (18650 Li-ion standard)
- LoRa, FLRC, (G)FSK supported modulations
- Configurable detection types
- Sound and vibration alerts
- Lightweight, 200g only
- Compact size: 7 x 5 x 3 cm
- Regular software updated via WiFi
- Low cost
- Personal alerting device
- Tracking hostile drone routes
- Collecting hostile drone radio signatures
- Integration with electornic warfare systems
Applications
Drone Detection Features
- Detects by Radio Emissions: Identifies telemetry signals from drones.
- Military Drones: Detects Russian drones like Orlan, Zala, Lancet, and Supercam at distances up to 15 km.
- Commercial Drones: Identifies DJI Mavic within 1 km range and FPV drones with standard firmware/settings up to 10 km.
- Rough Direction Finding: With directed antenna it allows approximation of the drone's direction.
- Automated Mode: Notifies the user via sound, vibration, and an OLED screen for detected drones, no need to look at it all the time.
- Real-Time Spectrum Analysis: Features RSSI mode for observing the radio spectrum in real time.
- Supplied 50,000 units to the Ukrainian Army gaining very positive feedback.
- Proven success in real-world operational environments.
Field-Proven and Trusted
Enhanced Tactical Awareness
- Can be integrated into tactical awareness systems using custom wrappers.
- Designed for modern battlefield communication systems.
- Ease of Use: Designed for simplicity with a single-page manual to get started quickly.
- Automated Alerts: Fully automated detection mode with customizable audio, vibration, and screen alerts for immediate awareness of different threats.
- One button for mode change and simple menu operation, allowing users to quickly toggle between automated mode, RSSI spectrum analysis and menu for e.g. enabling directional scanning or changing sensitivity threshold.
- Software Updates: Convenient updates via Wi-Fi, ensuring the device stays current in the field.
